предмет номер :
CNLC-ED-SM0515Размер :
CustomizeЯркость :
5500/6500 cd/m²коэффициент разрешения :
SMDМатериал :
Aluminum StructureЦвет :
Black / Silver / Grey / CustomizeВодонепроницаемый класс :

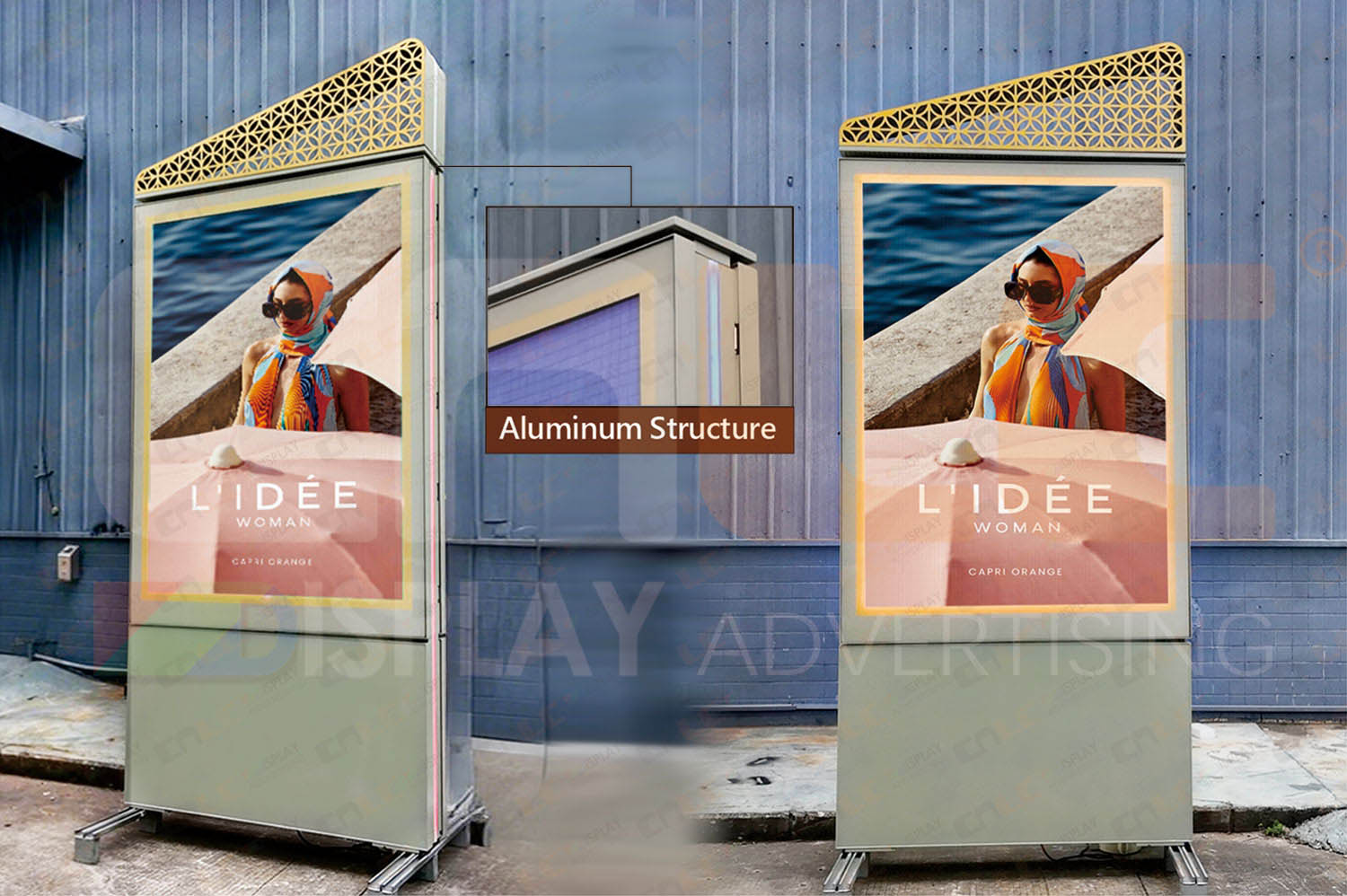

IP56Durable Aluminum Structure for Harsh Outdoor Conditions
◆ Designed for outdoor DOOH applications in the Middle East, this LED totem display features a high-strength aluminum enclosure that resists corrosion, sand, and extreme heat. The lightweight yet rigid frame ensures structural stability while allowing efficient heat dissipation — making it ideal for high-temperature environments. Its sleek and professional design enhances durability and aesthetic appeal in demanding public spaces.

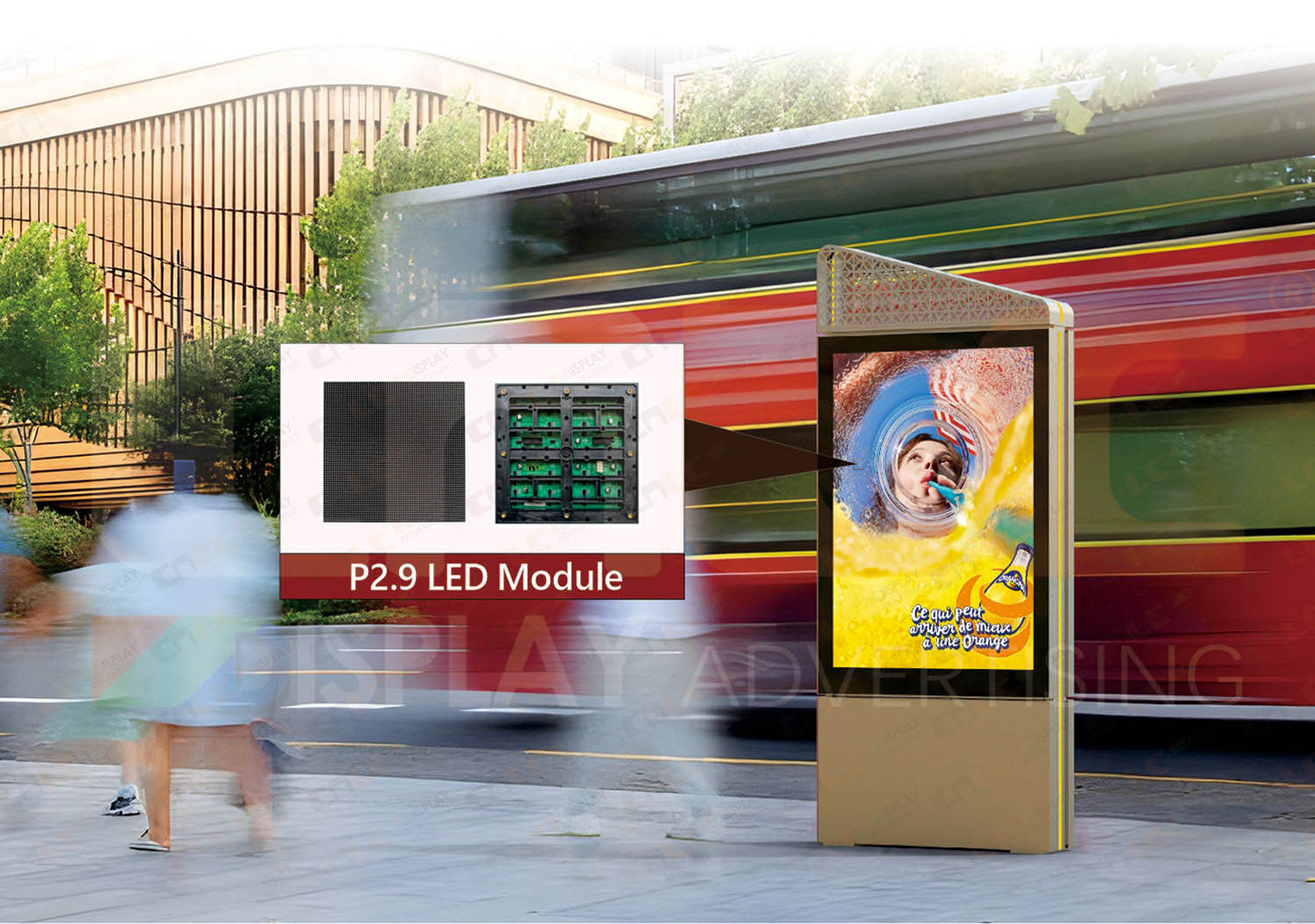

Sunlight-Readable P2.9 LED Display
◆ Equipped with a P2.9 fine-pitch LED module, this totem delivers ultra-clear images even at close viewing distances. With brightness options of 5500 nits or 6500 nits, it ensures excellent readability under direct sunlight — making it ideal for outdoor DOOH applications that demand both clarity and impact.

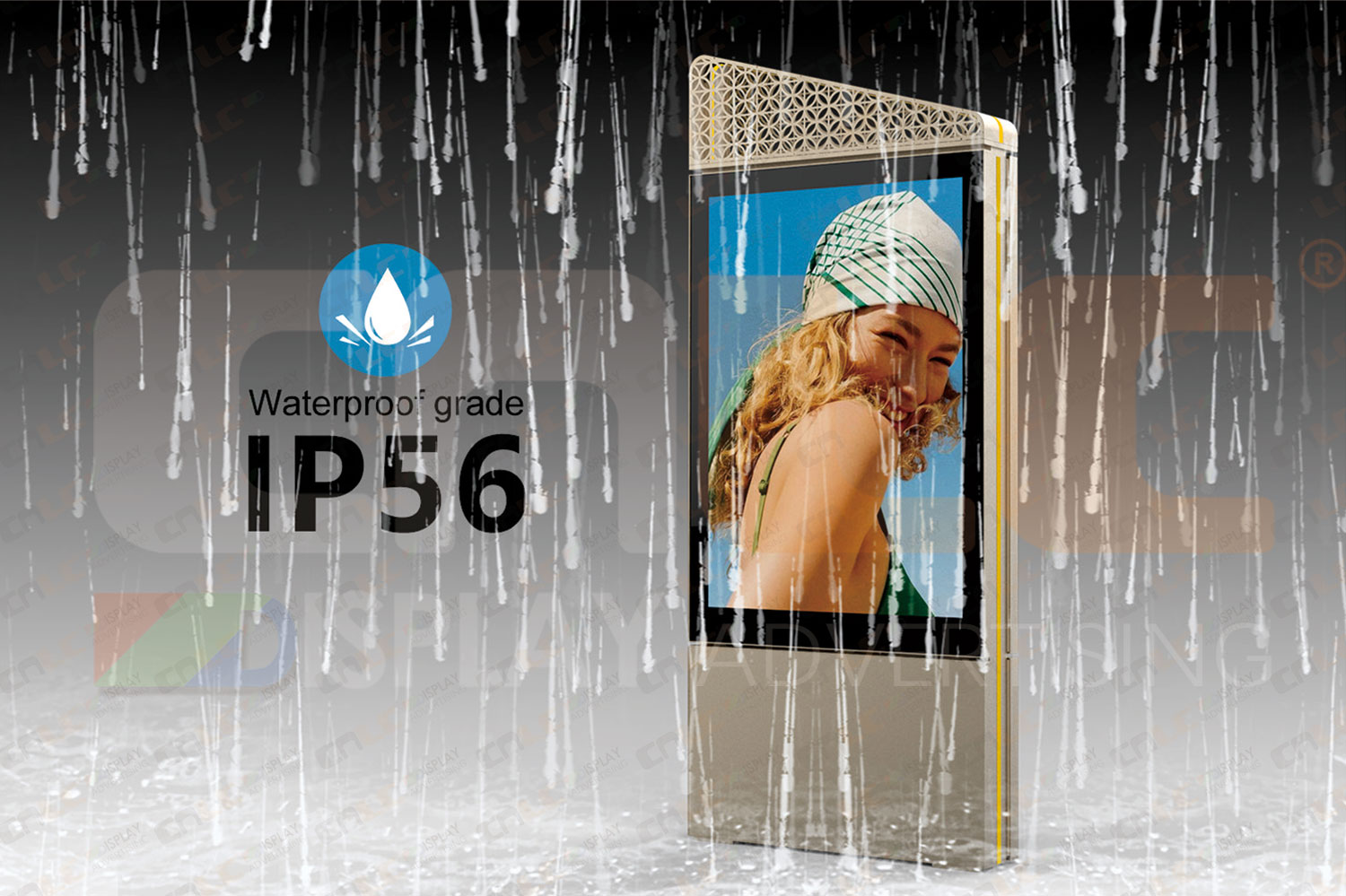

Rugged IP56 Protection for Outdoor Reliability
◆ Built for challenging outdoor environments, this LED totem display is rated IP56, providing robust protection against dust ingress and powerful water jets. Whether exposed to sandstorms, rain, or humidity — especially in Middle Eastern climates — it ensures stable, long-term performance for outdoor DOOH deployments.

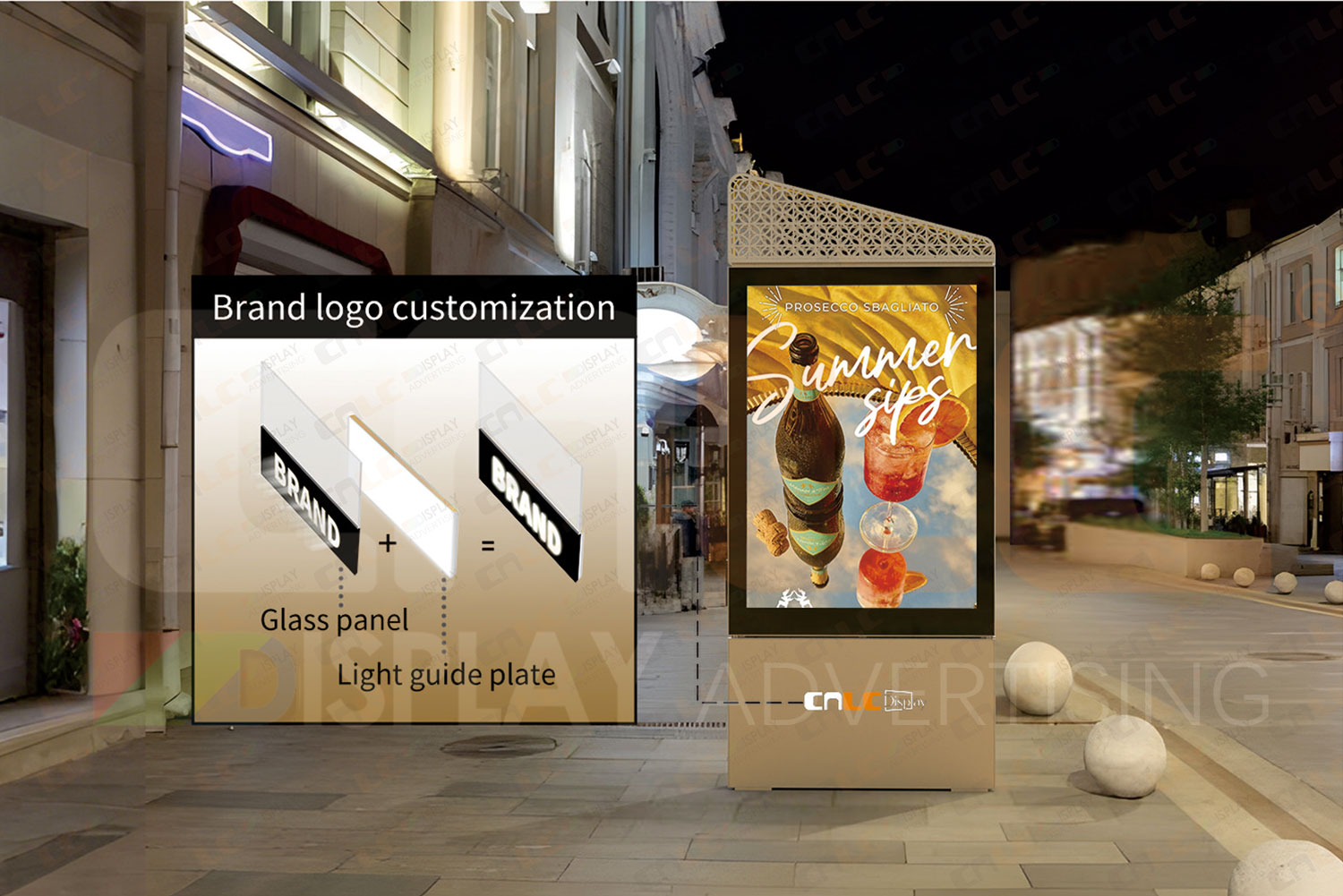

Customizable Illuminated Logo for Brand Visibility
◆ This LED totem supports a custom backlit logo, allowing businesses to display their brand prominently — even at night. The illuminated logo enhances brand recognition and adds a professional touch to your DOOH installations, making it ideal for retail chains, public spaces, and transportation hubs.

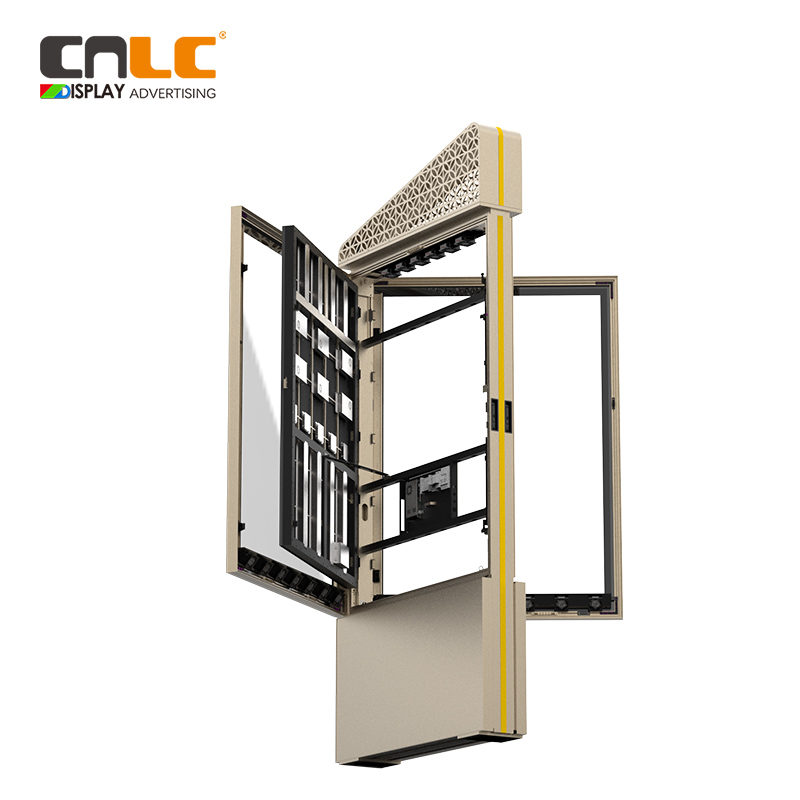

Dual-Sided Design: LED Display + Light Box
◆ This versatile double-sided totem features a dynamic LED display on one side and a static light box on the other, maximizing advertising impact for outdoor DOOH campaigns. The LED screen delivers vivid, high-brightness visuals, while the light box supports traditional posters with internal illumination. Perfect for urban streets, malls, and petrol stations, this hybrid format enhances brand visibility from both directions.
TECHNICAL SPECIFICATIONS
| Pixel Pitch(mm) | 2.976mm | ||
| Module resolution | 84*84 | ||
| Module size (mm) | 250*250 | ||
| Density (points/m²) | 112896 | ||
| Scan method | 1/13scan | ||
|
LED Encapsulation
|
SMD1921
|
||
|
Pixel configuration
|
1R1G1B
|
||
| Material of Frame and Support Structural | Aluminum profile and steel frame | ||
| Cooling system | Build in cooling fans | ||
| Embedded heater | Optional | ||
| Media update | Remote control (LAN and WIFl) | ||
| Operating Ambient Temperature | -20℃~+60℃ | ||
| Waterproof level |
Front IP56
|
||
| Maintenance method | Back | ||
| Refresh frequency (Hz) | 3840 | ||
| Brightness(nits) | 5500/6500 | ||
| Viewing angle (horizontal/vertical) | 170°/170°±5° | ||
| Contrast Ratio | 4000:1 | ||
|
Energy Saving design
|
4.2-5Vvoltagedesign
|
||
|
Ave.Power Consumption(W/m²)
|
342
|
||
|
Max. Power Consumption(W/m²)
|
684 | ||

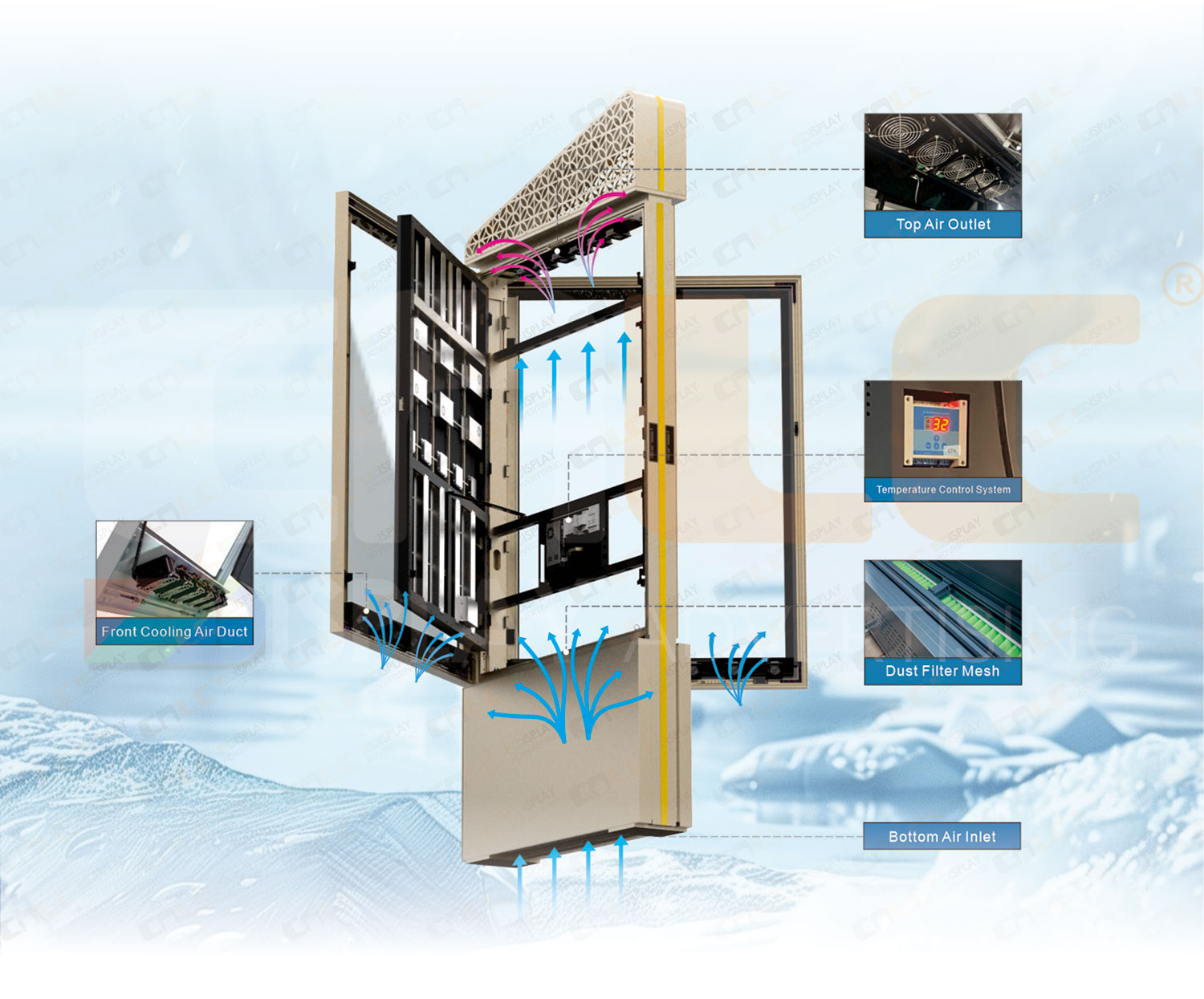

Designed for extreme outdoor environments like the Middle East, this double-sided LED totem features a high-brightness P2.9 display with 5500 to 6500 nits, ensuring excellent visibility even under direct sunlight. The aluminum structure provides strength with reduced weight, while an intelligent active cooling system with temperature-controlled fans keeps the internal temperature stable. Combined with IP56 protection, a rear static lightbox, and a customizable illuminated logo, it's the ideal solution for demanding DOOH advertising applications.
