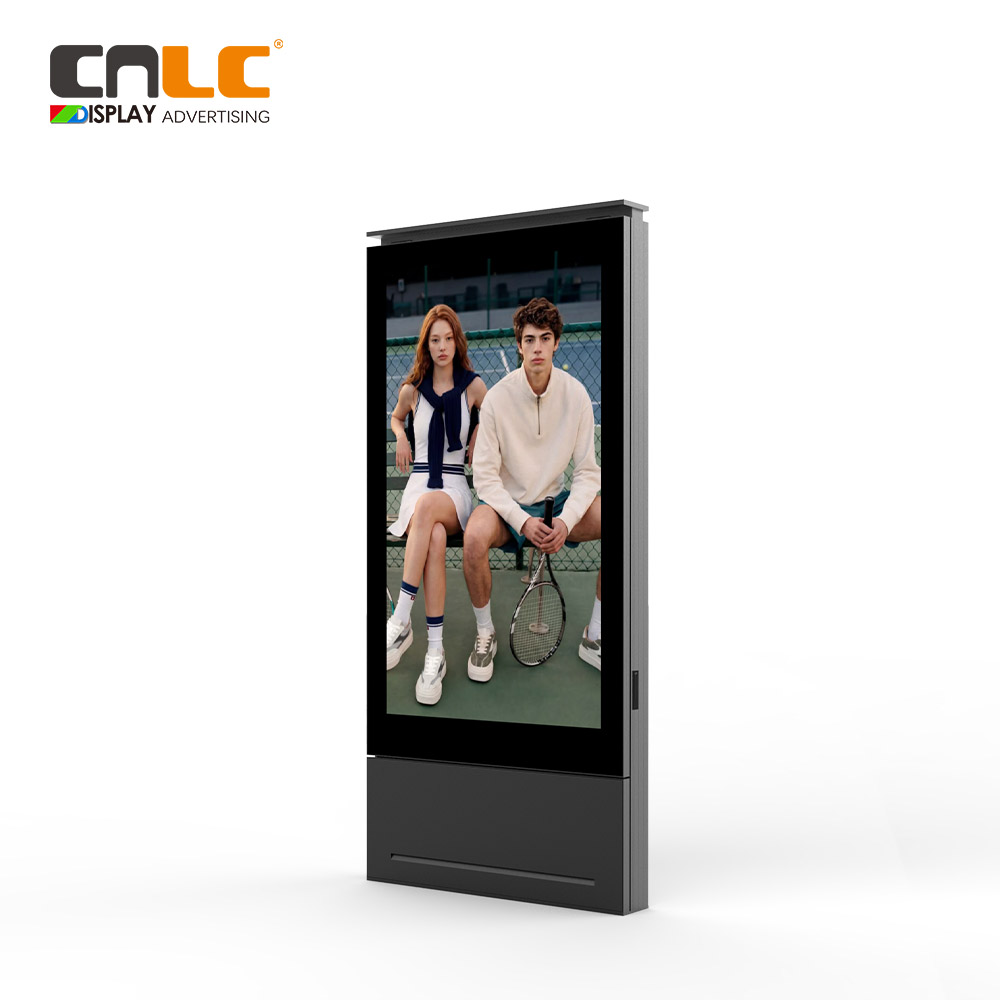

IP66 Outdoor LED Totem Display 5000nits DOOH Advertising

IP66 Outdoor LED Totem Display 5000nits DOOH Advertising

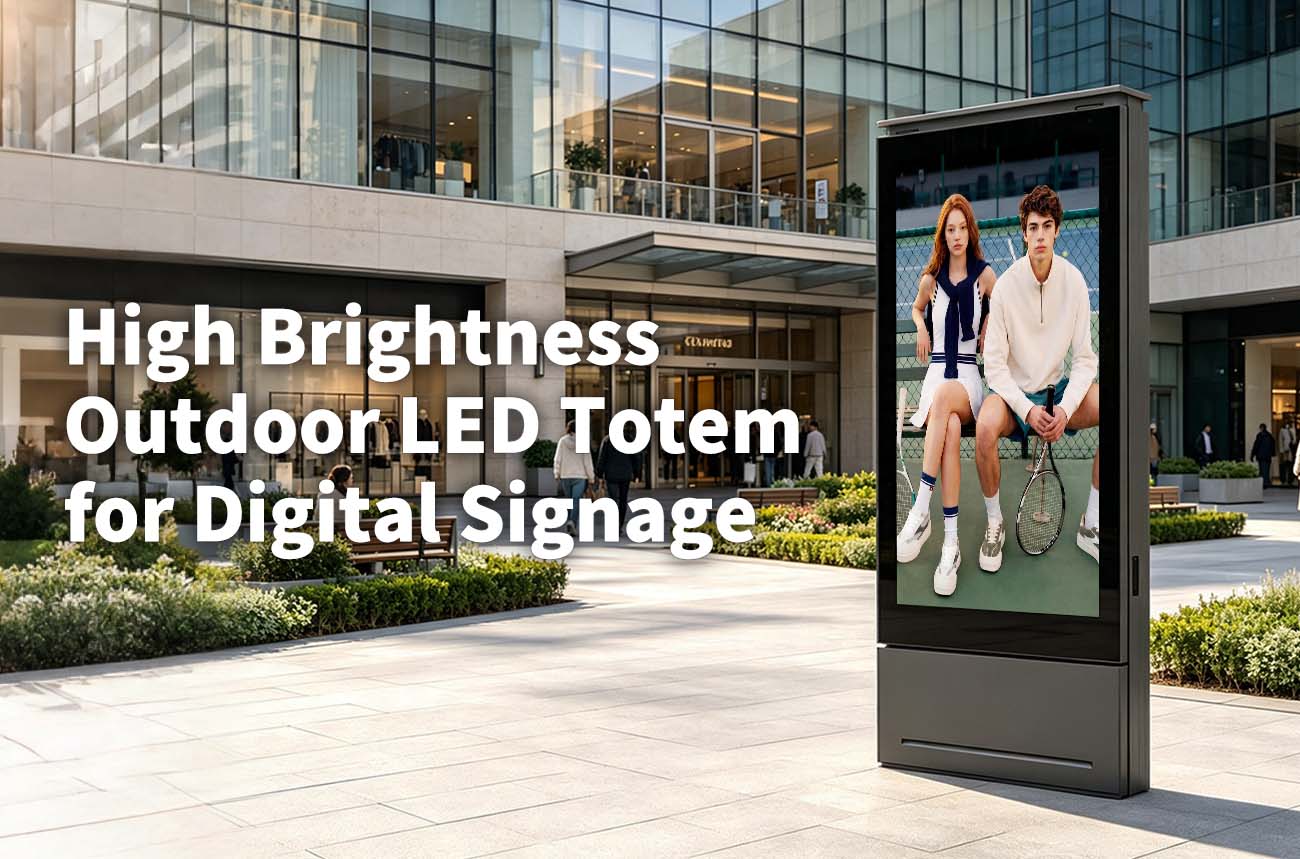

Built for demanding outdoor environments, this CNLC P2.9 commercial LED totem adopts a precision aluminum housing, IP66 weatherproof protection, and IK10-rated impact resistance. Equipped with an intelligent thermal management system, it ensures stable year-round operation under extreme temperatures. Featuring high-brightness LED technology, it delivers outstanding visual performance for DOOH advertising, retail media networks, transportation hubs, and smart city digital signage applications.

предмет номер :
LE-OU-185VA
Размер :
Customize
Яркость :
5000 cd/m²
коэффициент разрешения :
SMD
Материал :
Aluminum Structure
Цвет :
Black / Silver / Grey / Customize
Водонепроницаемый класс :
IP66

Узнать сейчас

информация о продукте

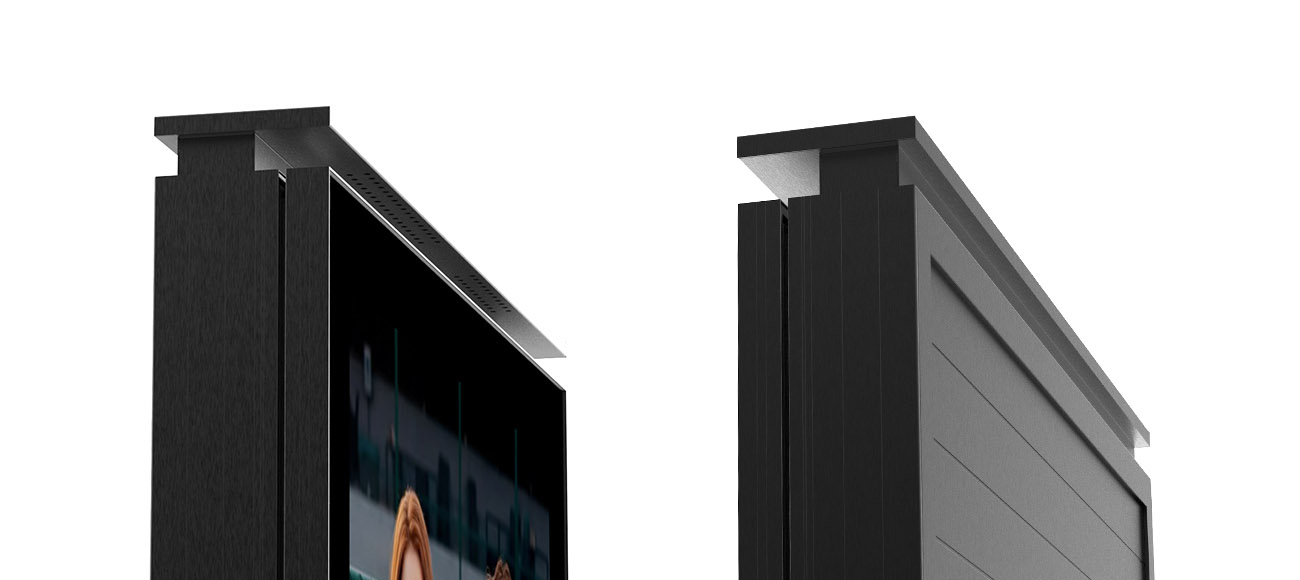

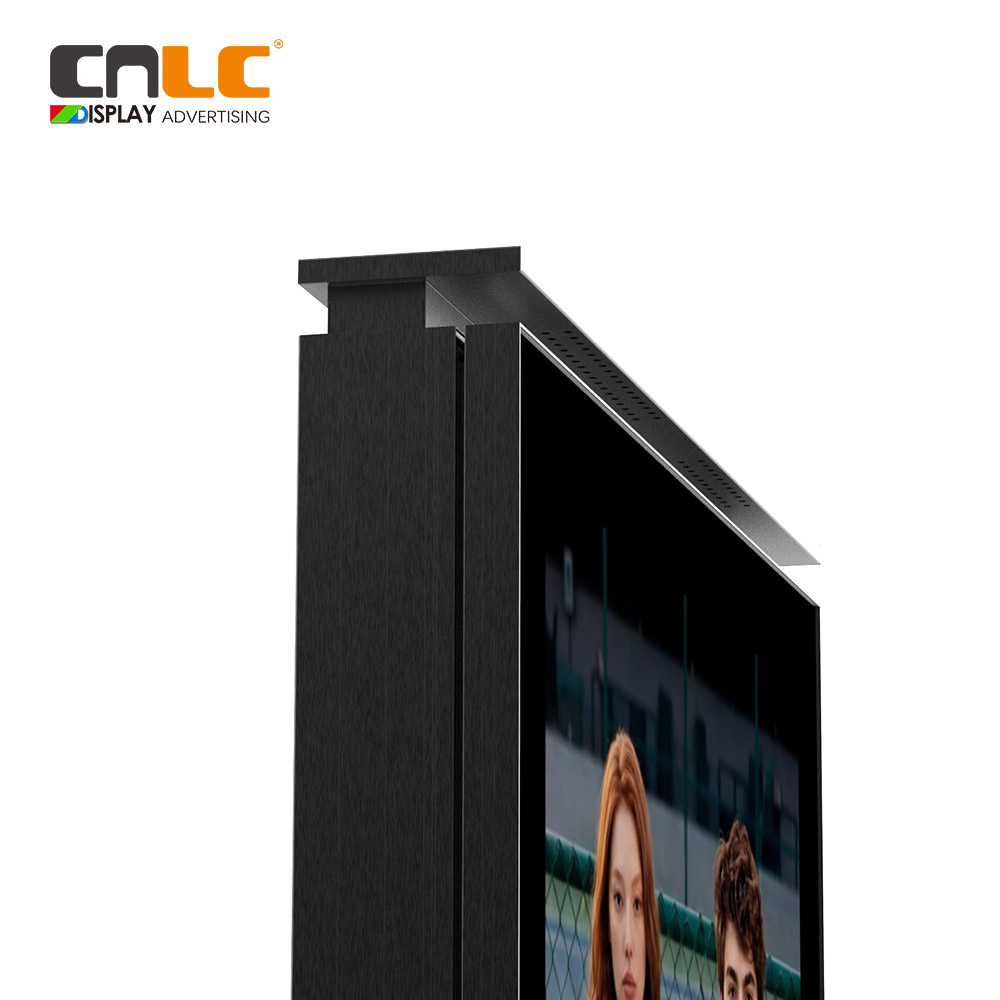

Lightweight, Corrosion-Resistant Aluminum Housing

◆ Built with a precision-engineered aluminum housing, the outdoor LED advertising display combines a lightweight structure with superior corrosion resistance. This durable construction ensures long-lasting performance in coastal areas, desert environments, and urban installations.

Aluminum housing design for outdoor LED totem display

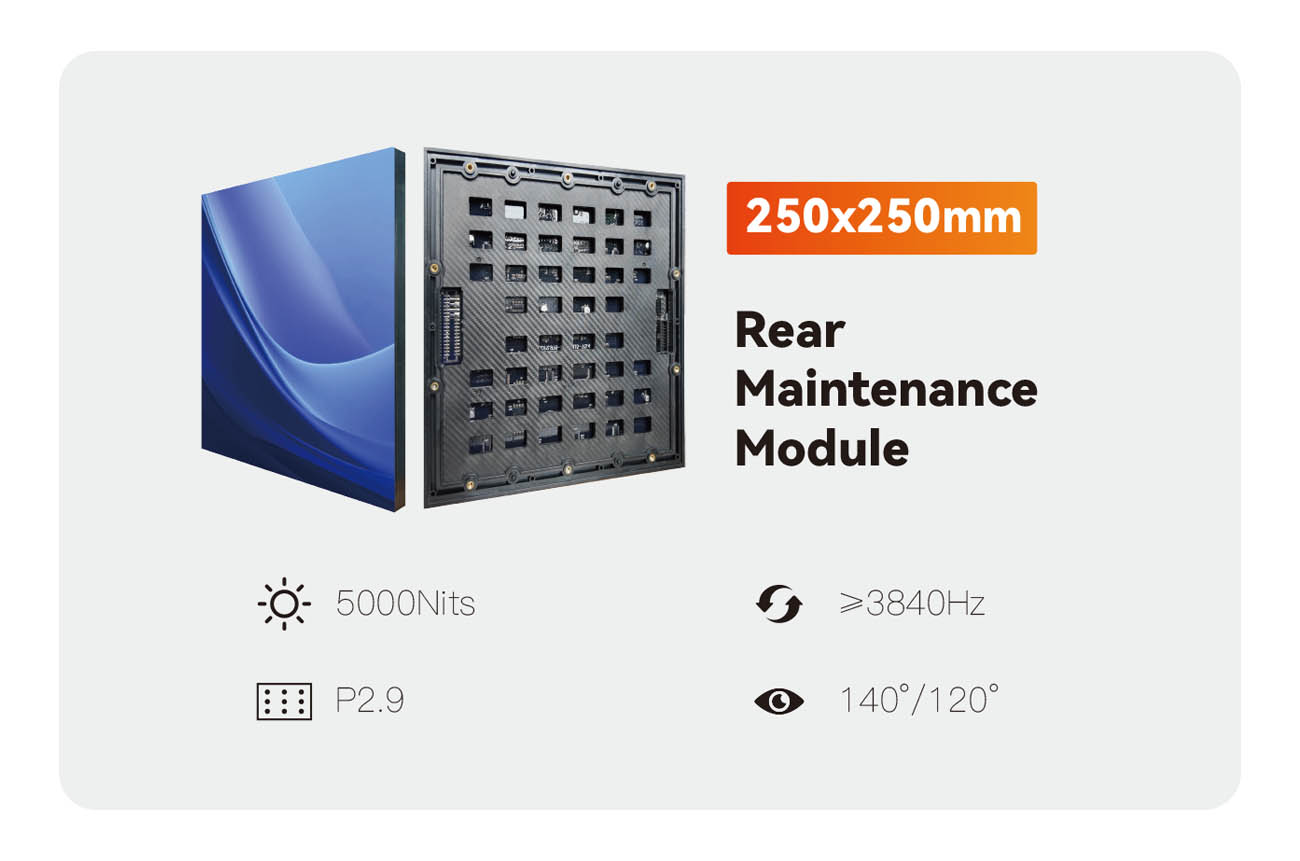

P2.9 High-Brightness LED Module

◆ CNLC’s outdoor LED totem is equipped with a high-performance LED module designed for reliable DOOH applications. Featuring a high refresh rate, stable image performance, and optimized brightness output, it delivers clear and vivid visuals for outdoor advertising, smart city displays, and public information applications.

High brightness LED module for outdoor digital signage display

Rugged IP66 Protection for Outdoor Reliability

◆ Built for challenging outdoor environments, this LED totem display is rated IP66, providing robust protection against dust ingress and powerful water jets. Whether exposed to sandstorms, rain, or humidity — especially in Middle Eastern climates — it ensures stable, long-term performance for outdoor DOOH deployments.

Outdoor LED signage operating in heavy rain with IP65 waterproof protection

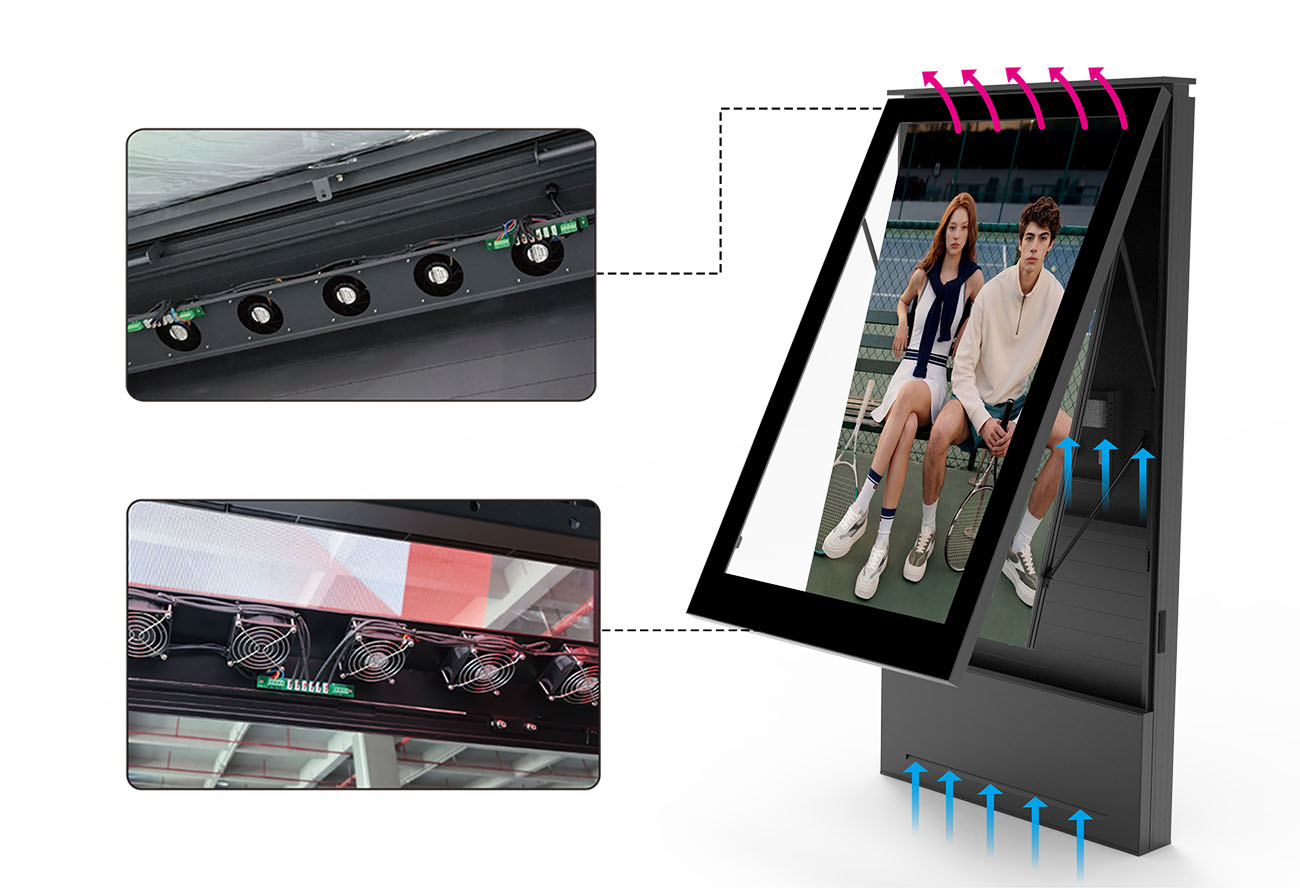

Advanced Cooling System for Reliable Performance

◆ This outdoor LED totem is engineered with a front cooling air duct, bottom air inlet, and top air outlet to create a powerful natural airflow path. Combined with an intelligent temperature control system and internal dust filters, it ensures stable operation even in regions with extreme heat. The optimized ventilation design protects internal components, extends product lifespan, and guarantees consistent DOOH advertising performance in harsh outdoor environments.

Thermal management system for outdoor LED totem display

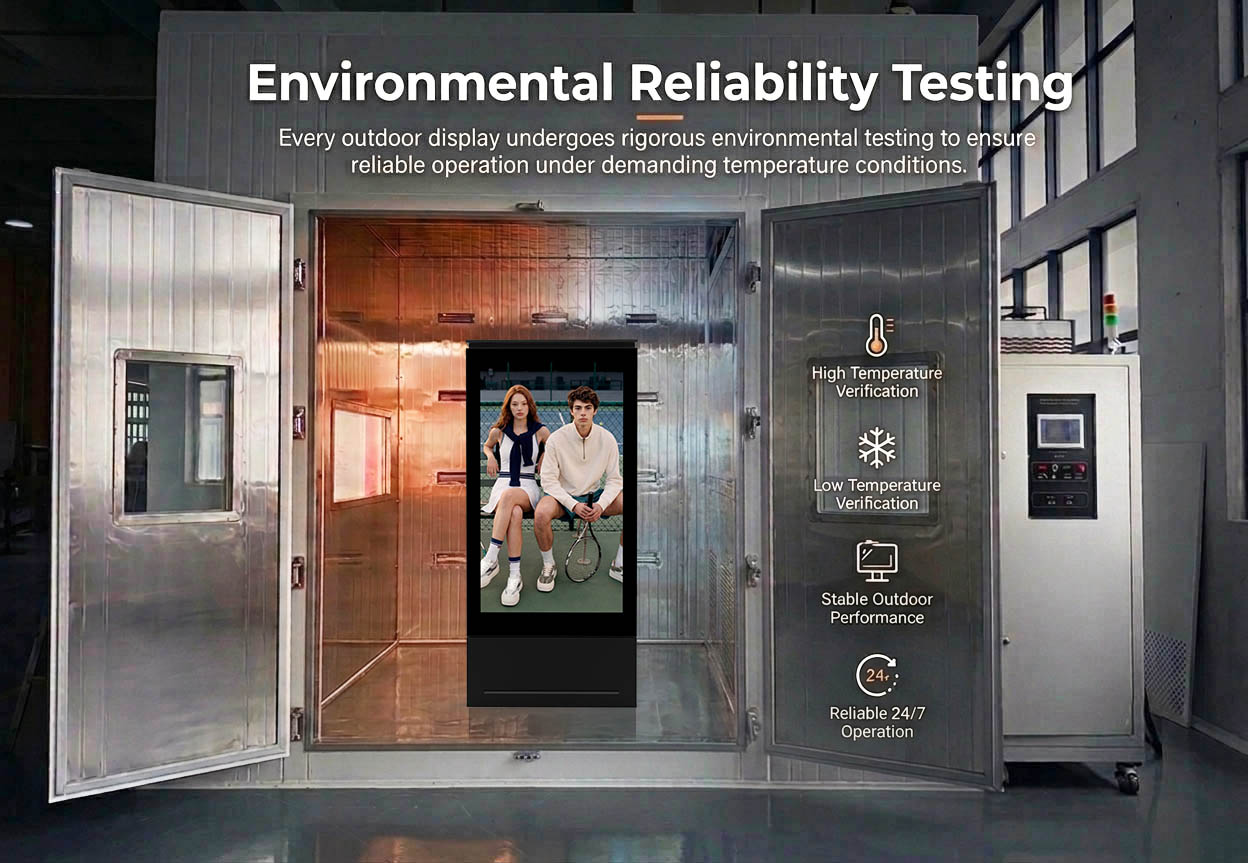

Stable Performance in Extreme Temperatures

◆ Designed for demanding outdoor environments, our outdoor LED display maintains stable brightness, reliable operation, and long-term performance under both high and low temperature conditions. Every unit is validated in our environmental testing chamber to ensure dependable performance before delivery.

Solar radiation testing for outdoor LED display reliability

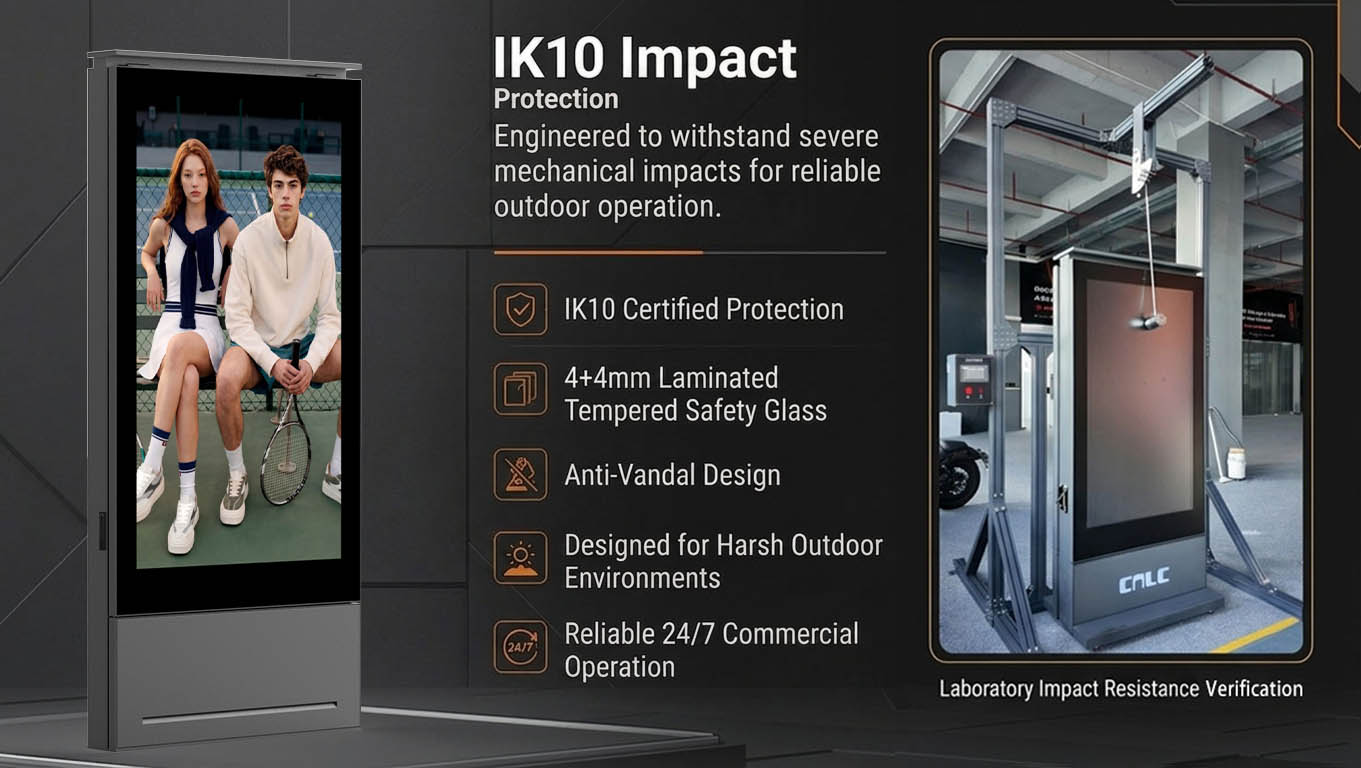

Professional Impact Resistance Validation

◆ Every design is verified through in-house IK10 impact testing to ensure outstanding resistance against accidental impacts and vandalism. Rigorous validation helps deliver reliable performance and long-term durability for demanding outdoor installations.

TECHNICAL SPECIFICATIONS

Pixel Pitch(mm)	2.9mm

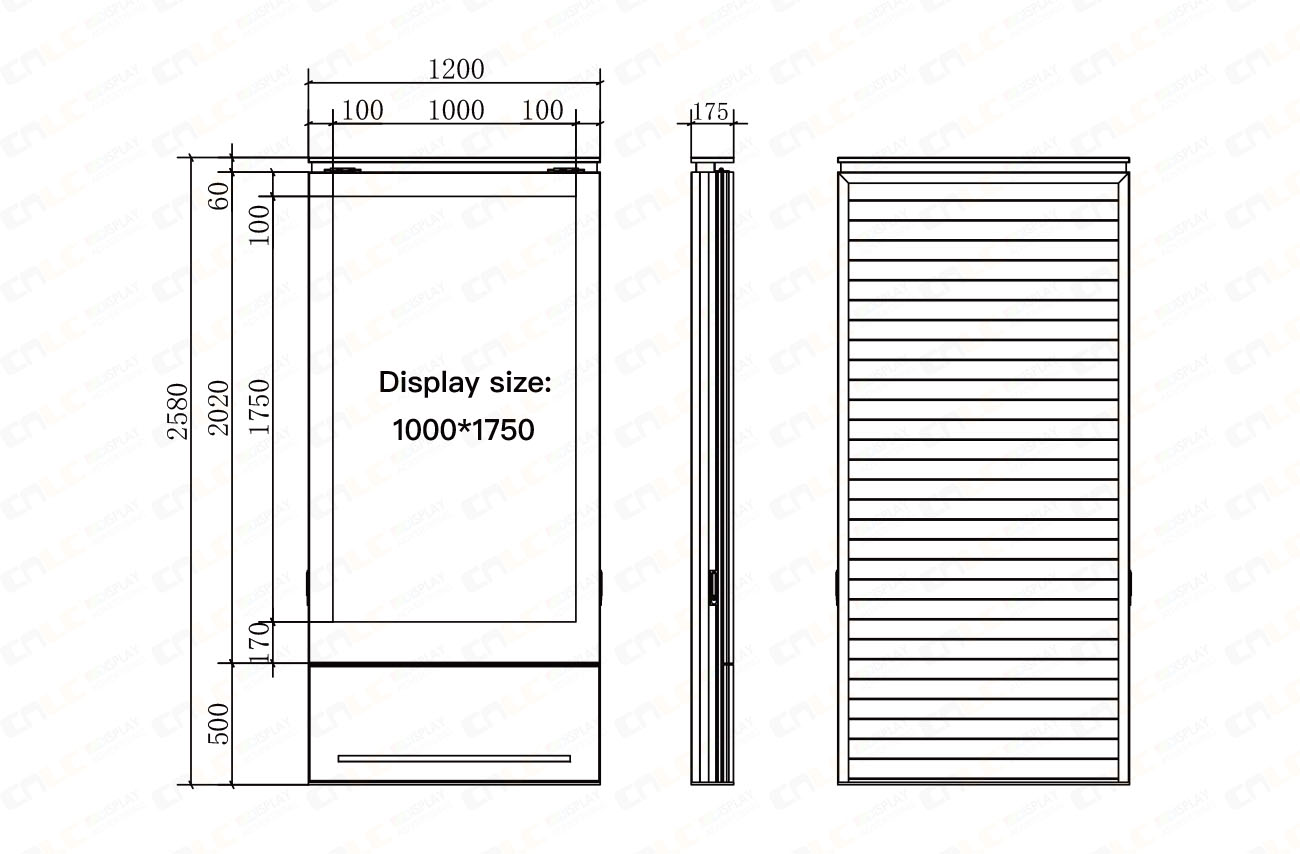

Display Size(mm)	1000*1750
Module size (mm)	250*250
Pixel Density(Dots/m²)	112896
Scan method	1/21scan
LED Encapsulation	SMD1415
Material of Frame and Support Structural	Aluminum profile
Cooling system	Build in cooling fans
Embedded heater	Optional
Media update	Remote control (LAN and WIFl)
Operating Ambient Temperature	-20℃~+50℃
Waterproof level	IP66

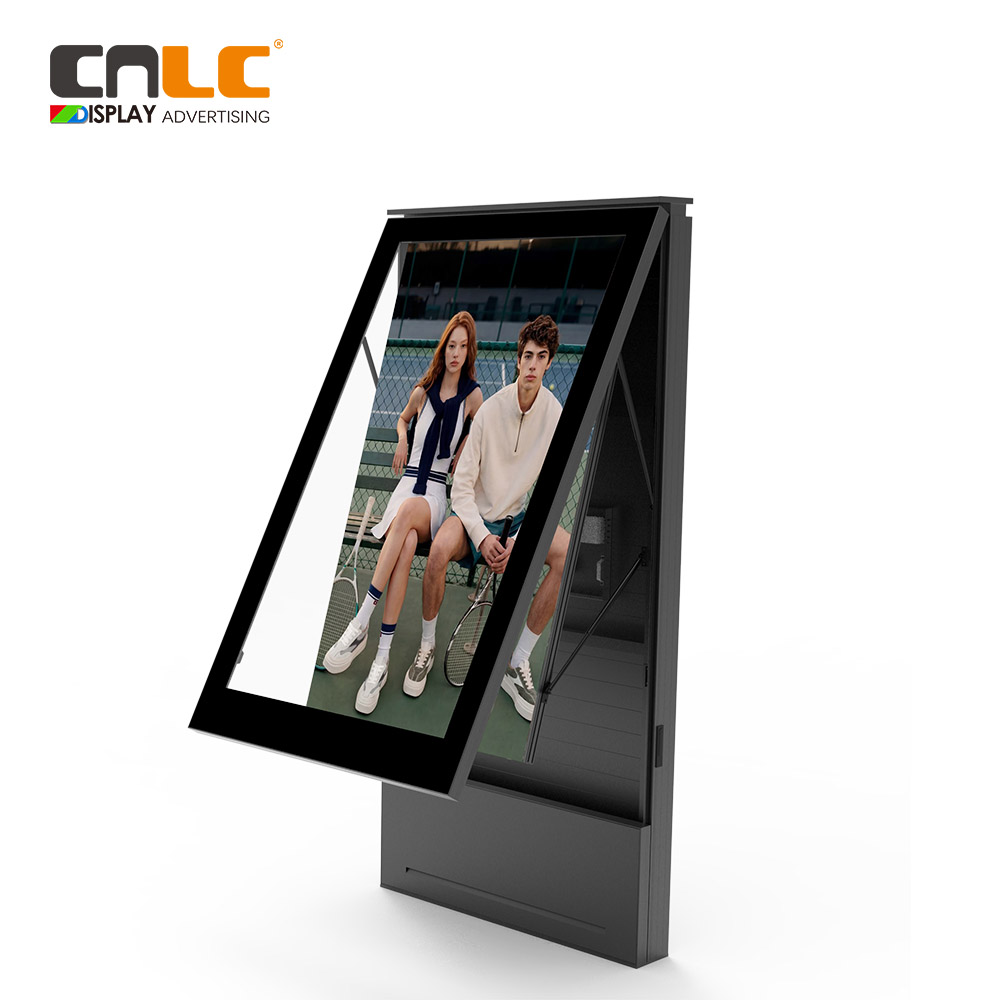

Maintenance method	Front or rear maintenance
Refresh frequency (Hz)	1920/3840
Brightness(nits)	5000
Viewing angle (horizontal/vertical)	170°/170°±5°
Thickness of Tempered Glass	6mm / 8mm(Laminated glass) IK10
Maximum Power(W/m²)	720

WHY CNLC OUTDOOR DIGITAL DISPLAYS？

IP rating aluminum profile casing resists dust,rain,snow and anti-corrosion.
Easy to install, moving to right place ,connect to power and mount the bolts on the ground. Lower the labor costs for installation and maintenance.
Close visual and auditory impact allows the viewers to more realistically feel the advantages of the product, which is the best way to promote products and services.
IK10 vandal resistance and intelligent thermal managment ensure the durability of CNLC outdoor digital displays.
Smoothly operating under temperature from -35 to 60 ℃，even in mountain and seaside.

Contact us to learn more and customize an LED

display to fit your advertising needs.
