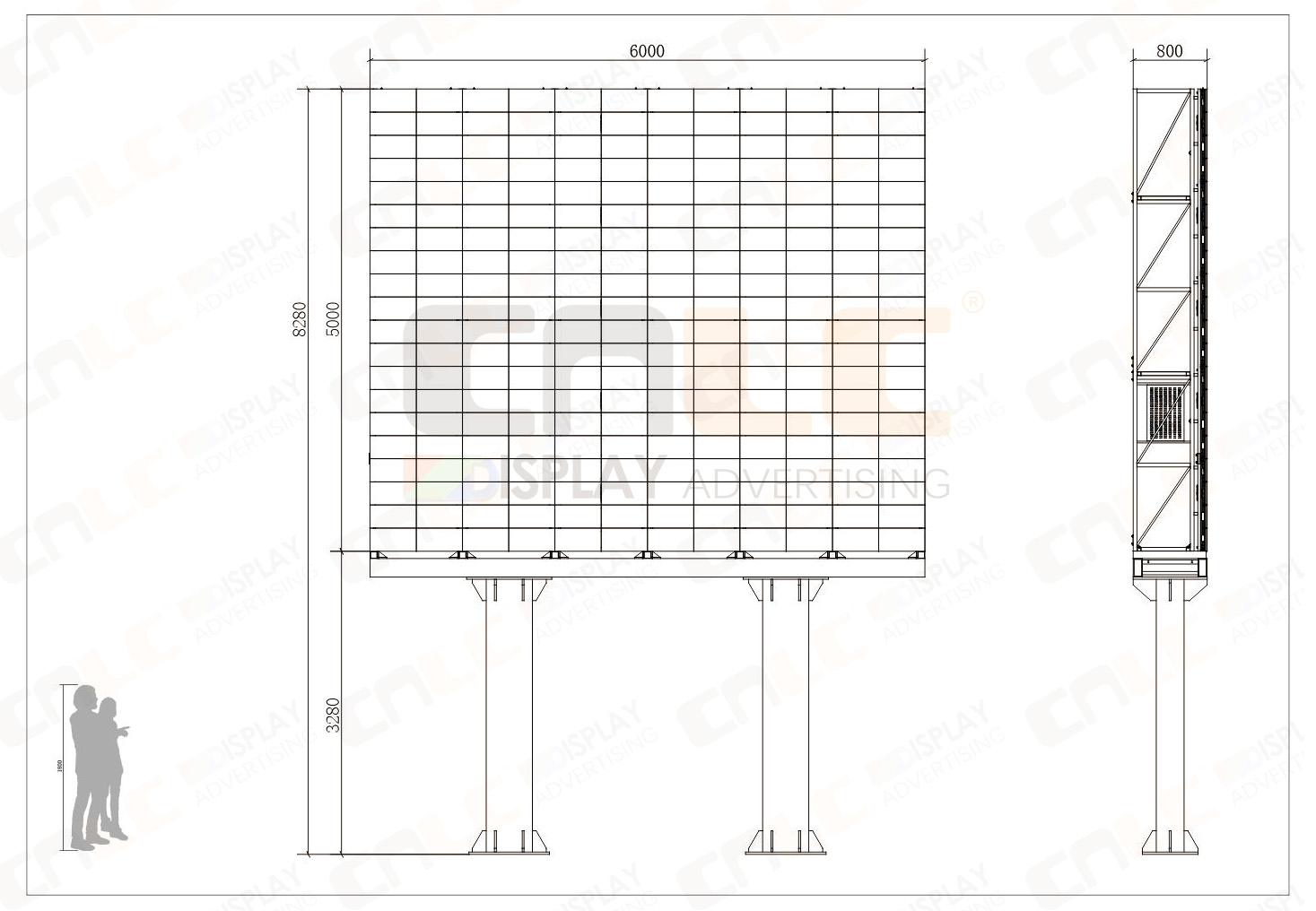

6×5m Modular LED Billboard Solution

Solution Overview

The CNLC 6×5m Modular LED Billboard is designed for large-scale outdoor advertising, combining high-brightness display, flexible assembly, easy maintenance, and energy-saving design. The screen features a modular structure for split shipping, enabling more flexible transport and efficient on-site installation. Whether it’s for highways, commercial plazas, or large event venues, this LED billboard delivers clear and stable visual performance.

Key Highlights:

• Modular Shipping: Each module is independent, allowing partial shipment to reduce logistics costs and enable fast on-site assembly.

• Flexible Assembly: The standard 6×5m screen can be split or combined into various sizes according to customer needs.

• High-Brightness All-Weather Display: ≥5500 nits brightness ensures clear content even under direct sunlight.

• Front & Rear Maintenance: Modules can be removed from both front and rear, making maintenance convenient and reducing downtime.

• High Protection & Durability: Front IP67 / Rear IP65, combined with steel main frame and reinforced skeleton, ensures long-term stability.

• Energy-Saving Design: 4.6V / 5V voltage design reduces overall power consumption while maintaining high performance.

💡 Applicable Scenarios: Highways, commercial plazas, urban outdoor advertising, exhibitions, and other locations requiring large, high-brightness outdoor displays.

2. Key Product Specifications

3. Rear Structural System

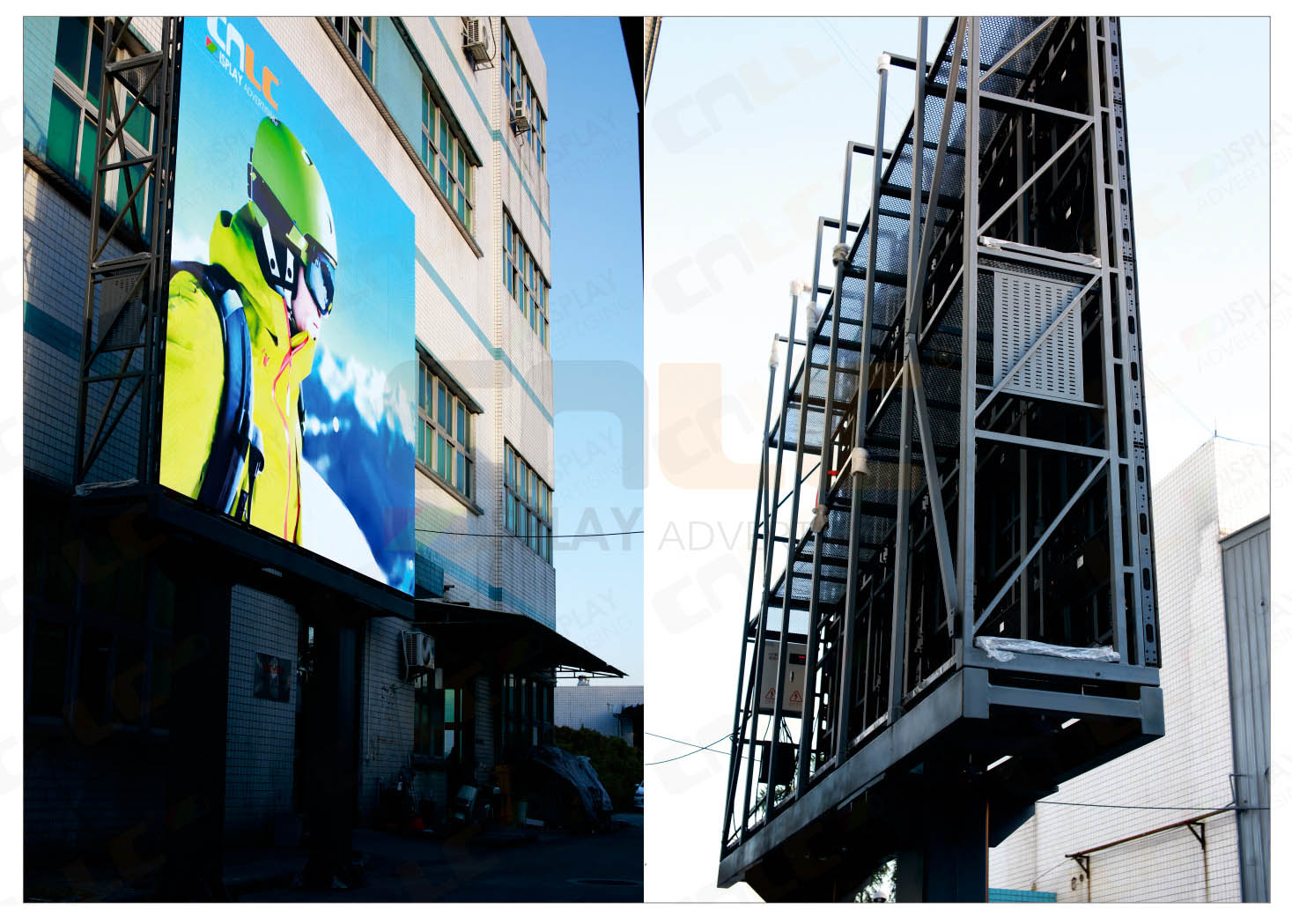

To ensure 24/7 stable outdoor operation, the billboard uses a professional outdoor-grade rear structure system.

Rear Structure Components:

• Steel Main Frame (Skeleton)

• Reinforced Square Tube Skeleton

• Rear Maintenance Footboard

• Support Columns

• M20 High-Strength Bolts

• Concrete Anchor Fixing

Structural Advantages:

• Rear footboard ensures safe maintenance access

• Reinforced skeleton increases overall rigidity and reduces deformation

• Solid fixation suitable for long-term outdoor deployment

• Structure lifespan ≥10 years

4. Installation Process

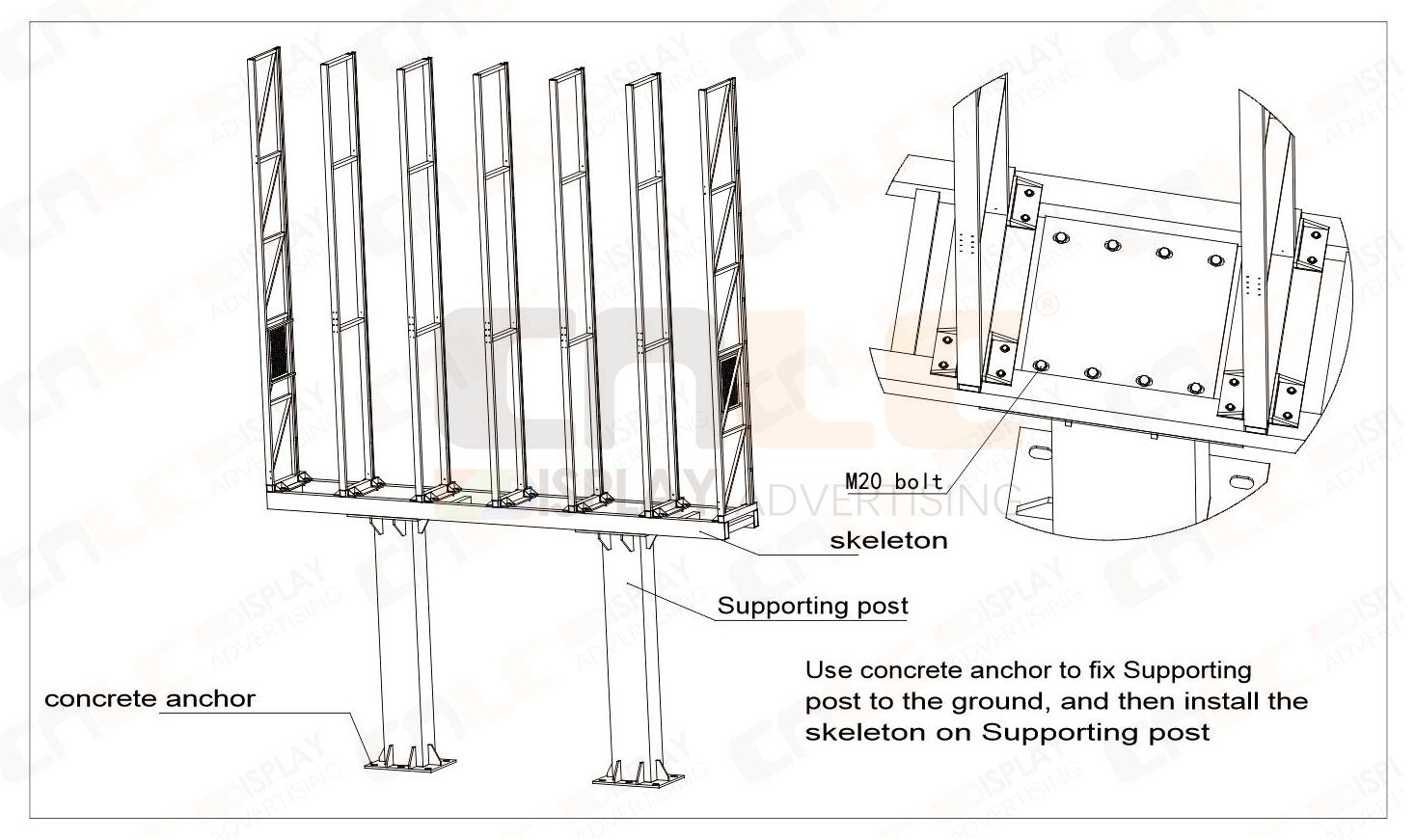

Foundation & Anchoring
Pour concrete foundation and embed Concrete Anchors.

Support Column Installation
Fix columns to the foundation and calibrate vertical alignment.

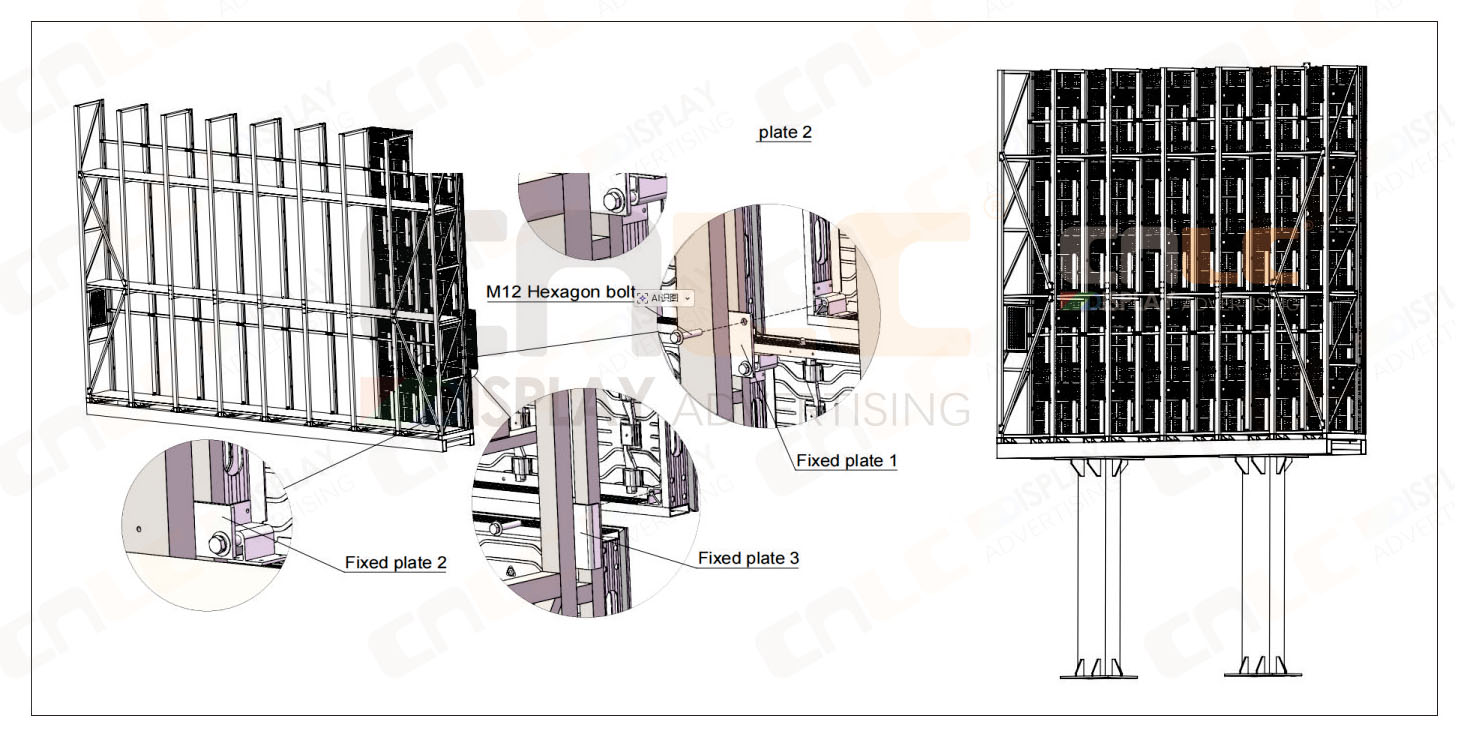

Rear Steel Support Structure Installation

• Install the steel frame skeleton

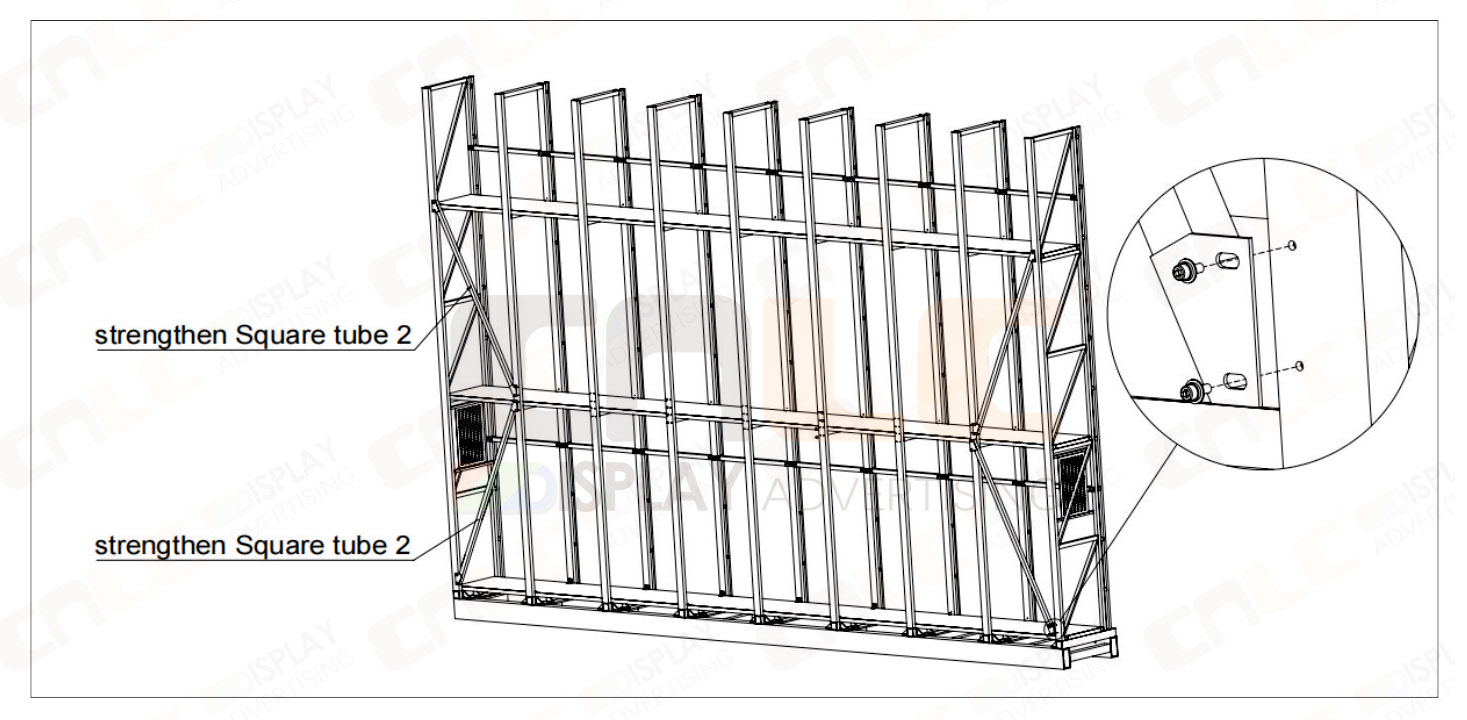

• Reinforce with Reinforced Square Tubes to improve structural strength and wind resistance

• Install maintenance Footboard

• Secure all critical points with M20 high-strength bolts

Modular Screen Assembly
Install LED modules sequentially to form the complete screen surface.

Wiring & System Commissioning
Connect power and signal → color calibration → complete full-screen operation test.

5. Modular Shipment & Global Delivery

To accommodate international shipping, project deployment, and large-scale installations, the solution supports:

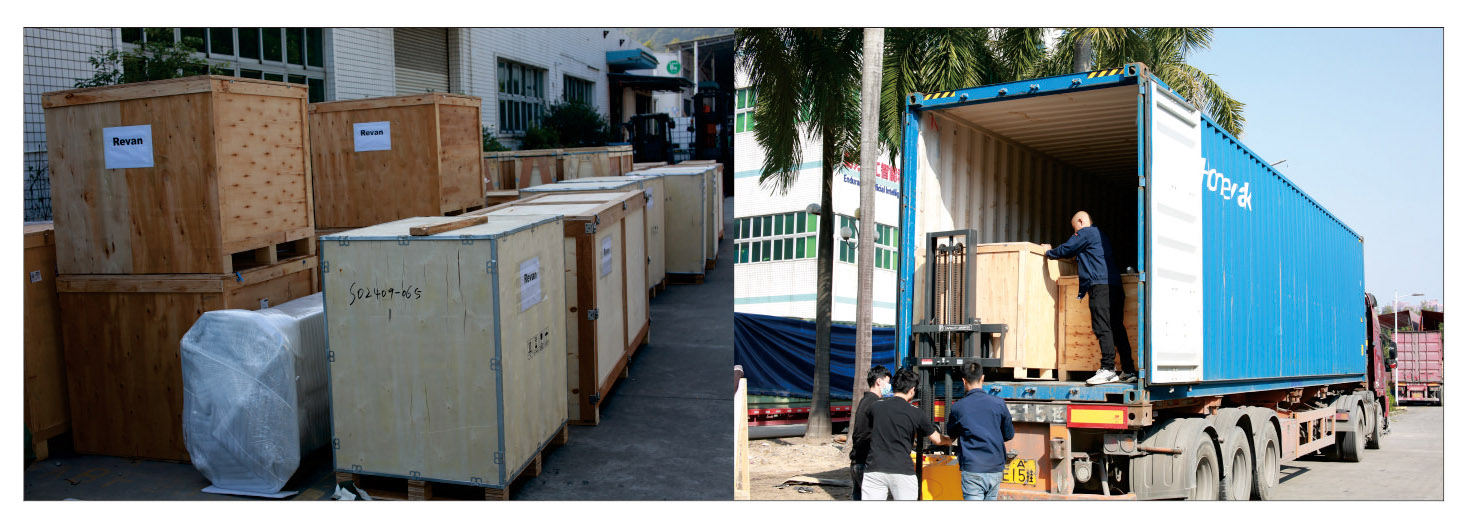

• Fully Disassemblable Shipment (Cabinets + Steel Structure)

• Cabinets, skeleton frame, and support columns are packed separately to reduce shipping volume and cost

• Quick On-Site Assembly following numbered components

• Compliant with installation team standards in different regions (EU / US / AU)

• Ideal for cross-border projects, government tenders, and large-scale advertising deployments by agencies

6. Customer Value Summary

By choosing this LED Billboard solution, you will gain:

✔ Lower Transportation Costs
Modular shipment reduces logistics expenses

✔ Faster Installation
Higher on-site assembly efficiency

✔ Lower Maintenance Costs
Front & rear service plus footboard access

✔ Higher Advertising Value
5500 nits + high contrast = all-weather display

✔ Stable and Reliable Outdoor Performance
IP67/IP65 + steel structure + energy-saving system

7. Contact Us

Interested in 3D structural diagrams, technical specification PDF, installation guides, or project quotations?
Contact the CNLC team — we will provide a complete solution within 24 hours.
